Elevators
Stair Lifts
-
Hiro 120/220 stair lifts
- The HIRO 120 lift is an extremely flexible stair lift that was designed for installation on the inner side of curved staircases. With this model, since the guide rails are set at some distance from each other, it is possible to replace the seat with a standing platform or a wheelchair platform if this should become necessary due to an alteration in the prerequisites dictated by your personal requirements.
- Drive: patented traction drive ensures gentle smooth gliding operation
- Guide rails: lift runs on two polished stainless steel tubes
- Operating controls: via a control unit in the armrest, a radio remote control unit or a control unit on a spiral cable
- Speed: 0.1 m/sec
- Load capacity: 125 kg
- Type: stair lift with seat, standing platform or wheelchair platform - suitable for indoor and outdoor installation
- Power supply: automatic battery charging - 230 Volts 13 amp fused spur, power is trickle charged to the accumulator batteries whilst the lift is parked on its landing stations promoting smooth efficient operation.
- Dimensions: width when in motion 70 cm, when parked 43 cm
- Colour and design: 12 different RAL colours for supports and chair
- Type examination: TÜV, directive 95/16/EC
- More details.
-
Hiro 150 stair lifts
- Since the rail route is completely straight, it is possible to reduce the guide rail to a minimum. The lifts travel along a flat aluminum section that is fixed to the side of the stairs.
- Drive: patented traction drive or rack and pinion drive
- Guide rails: lift runs on a rail made of aluminum section
- Operating controls: via control unit in the armrest, radio remote control unit or control unit on a spiral cable
- Speed: 0.1 m/s
- Load capacity: 175 kg
- Type: stair lift for straight stairs, suitable for installation indoors and outdoors
- Power supply: automatic battery charging - 230 Volts 13 amp fused spur, power is trickle charged to the accumulator batteries whilst the lift is parked on its landing stations promoting smooth efficient operation
- Dimensions: width when in motion 60 cm, when parked 35 cm
- Special features: only suitable for straight flights of stairs, therefore particularly good value; fully automatic, electrically powered swivel seat for ease of mounting and dismounting at the upper landing; automatic folding rail possible if the door area is directly in front of the stairs.
- Type examination: TÜV, directive 95/16/EC.
- More details.
-
Hiro 160 inner guide stair lifts
- The HIRO 160 stair lift model guarantees the ultimate in curve stability and optimised ride comfort. Thanks to its state-of-the-art technology, it is ultra quiet and clean. An attractive design and customised colour options enable it to fit into a wide variety of living areas with the greatest of ease.
- Advantages: shorter travel path, smaller space requirement, leaves more space to climb the stairs, later extension possible to next floor up
- Drive: patented traction drive ensures gently gliding operation
- Guide rails: lift runs on two polished stainless steel tubes that are fitted on the inner side of the stairs
- Operating controls: via control unit in the armrest, radio remote control unit or control unit on a spiral cable
- Speed: 0.1 m/s
- Load capacity: 175 kg
- Power supply: automatic battery charging - 230 Volts 13 amp fused spur, power is trickle charged to the accumulator batteries whilst the lift is parked on its landing stations promoting smooth efficient operation.
- Special features: fully automatic, electrically powered swivel seat for ease of mounting and dismounting at the upper landing.
- More details.
Inclined wheelchair lifts
-
HIRO 320 inclined wheelchair lifts
- The HIRO 320 lift is HIRO LIFT’s standard model in the range of inclined wheelchair lifts. It is suitable for both straight stairs and stairs with curves.
- Type: inclined wheelchair lift for straight and curved stairs
- Areas of application: indoors and outdoors
- Drive: patented traction drive ensures gently gliding operation
- Guide rails: lift runs on two polished stainless steel tubes that are usually fixed on the inner side of the stairs
- Operating controls: via a radio remote control unit or a control unit on a convenient spiral cable Speed: 0.1 / 0.15 m/s, automatic speed reduction in curved sections
- Load capacity: up to 300 kg
- Power supply: automatic battery charging - 230 Volts 13 amp fused spur, power is trickle charged to the accumulator batteries whilst the lift is parked on its landing stations promoting smooth efficient operation.
- Dimensions: 80 cm wide, 100 cm deep 75 cm wide, 84 cm deep, 68 cm wide, 75 cm deep (other sizes available on request), 40 cm wide when parked
- Colours and design: 12 different RAL colours for supports and platform; more colours on request
- Special features: The HIRO 320 can be automatically folded up at the press of a button after use. The safety bars practically disappear behind the folded up platform. If required, the lift can also be fitted with a folding seat.
- More details.
-
HIRO 350 inclined wheelchair lifts
- The HIRO 350 inclined wheelchair lift is used for straight staircases indoors or outdoors. Its has a maximum standard load capacity of 300 kilograms and its outstanding cost-performance ratio ideally suits itself for use in public and business premises.
- Type: inclined wheelchair lift for straight staircases
- Areas of application: indoors and outdoors
- Track: aluminum profiles
- Operating controls: via a radio remote control unit or a control unit on a convenient spiral cable Speed: 0.1 m/s
- Load capacity: up to 300 kg
- Power supply: automatic battery charging - 230 Volts 13 amp fused spur, power is trickle charged to the accumulator batteries whilst the lift is parked on its landing stations promoting smooth efficient operation.
- Dimensions: 80 cm wide, 100 cm deep (other sizes available on request), 37 cm wide when parked
- Colours and design: 12 different RAL colours for supports and platform, more colours on request
- Special features: The platform has extra-long access ramps, up to 30 cm in length.
- The HIRO 350 can be automatically folded up at the press of a button after use. In its folded position the horizontal safety bars are neatly folded into the platform making the package unobtrusive to other staircase users. This feature can also be a great benefit especially in an outdoor public environment where the lift could be subjected to possible unwanted vandalism.
- If required, the lift can also be fitted with a folding seat, for example.
- More details.
-
HIRO 360/370 inclined wheelchair lifts
- For the special case where a staircase ends in a curve, a normal platform can not come to rest flush with the last step for wheelchair access. Such cases call for the HIRO 360 and the HIRO 370. Both these platforms can move vertically through 50 cm as well as along inclines. The lift continues at an angle beyond the end of the stairs and onwards to a suitable place in the hall area.
- Type: inclined wheelchair lift for straight and curved stairs
- Areas of application: indoors and outdoors
- Drive: patented traction drive ensures gently gliding operation
- Guide rails: lift runs on two polished stainless steel tubes that are usually fixed on the inner side of the stairs
- Operating controls: via a radio remote control unit or a control unit on a convenient spiral cable
- Speed: 0.1 m/s, automatic speed reduction in curved sections
- Load capacity: HIRO 360: up to 150 kg HIRO 370: up to 225 kg
- Power supply: automatic charging - 230 Volts via mains socket, power supplied by rechargeable battery when in motion
- Dimensions: 68 cm wide, 75 cm deep (other sizes available on request), 39.5 cm wide when parked
- Colours and design: 12 different RAL colours for supports and platform, more colours on request
- Special features: Vertical travel through up to 50 cm to enable optimum approach for stairs that end in a curve. For use in the private homes or public buildings: the space-saving tray platform of the HIRO 360.
- More details.
Platform Lifts
-

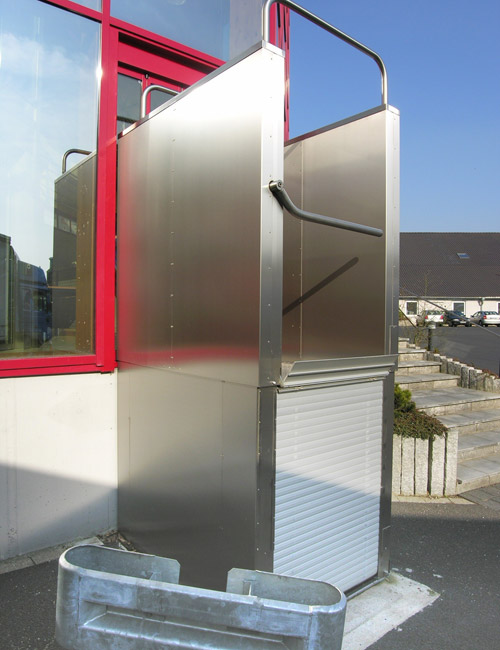

HIRO 450 wheelchair platform lift
- There are some buildings in which it is not possible to install an inclined lift and where a large vertical lift is not necessary since height difference to be negotiated is not great enough to warrant the larger lift. A special form of vertical lift for the disabled can be used in this case: the HIRO 450 wheelchair platform lift or more commonly know as a step lift.
- Type: wheelchair platform lift
- Areas of application: indoors and outdoors
- Drive: Quad toothed rack and pinion drive
- Operating controls: handset on a spiral cable
- Speed: 2.5 m/min.
- Vertical rise: normally up to 1.5 m
- Load capacity: 315 kg, further on request
- Number of stops: 2
- Power supply: automatic charging - 230 Volts via mains socket, power supplied by rechargeable battery when in motion
- External dimensions: platform width: 1310 mm, platform depth: 1250 / 1400 mm, further on request, access ramp 1:6
- Usable platform size: width 900 mm depth 1250 / 1400 mm, further on request
- Colours/materials: paint in RAL colours, stainless steel cladding
- Safety equipment: An aluminum shutter prevents access to the space beneath the platform. The platform is secured via safety bars during travel. An aluminum door can be installed at the upper landing if required.
- More details.
